Ultrasound Technique Treats Prostate Cancer with Minimal Side Effects

Use of MRI guides high-frequency ultrasonic waves to the site of the cancer

Ghai headshot

A technique that delivers high-intensity focused ultrasound (US) to targeted tissue under MRI guidance effectively treats intermediate-risk prostate cancer with minimal side effects, according to a study in Radiology.


Prostate cancer is the most common cancer among men, aside from non-melanoma skin cancers. Common treatments to the entire gland, such as surgery and radiation therapy, are effective in eliminating the cancer, but they often leave patients with incontinence and sexual dysfunction.


Focal therapy offers an alternative for some men with intermediate-risk disease that is still confined to the prostate. In focal therapy, the cancer is ablated by either heating or freezing the target tissue. Since the treatment is targeted to a small area within the prostate, side effects are generally less significant than those associated with surgery and radiation therapy.


High-intensity focused US uses sound waves to generate heat at a single point within the body and destroy the target tissue. In the past, it has been performed under US guidance, but US does not visualize the site of cancer within the prostate gland well enough to allow for a targeted approach.


For the new study, researchers studied a device that delivers MRI-guided focused ultrasound (MRgFUS). While the patient is under general anesthesia, a probe is placed in the rectum that focuses high-frequency ultrasonic waves to the site of the cancer. The procedure takes approximately four hours to perform.


“By combining the high-intensity focused ultrasound device with MRI, we can target our treatment to the exact location, because we’re able to pinpoint precisely where the tumor is,” said the study’s principal investigator and lead author Sangeet Ghai, MD, at Toronto’s Joint Department of Medical Imaging, part of the University Health Network (UHN) Sinai Health and Women’s College Hospital.


New MRI-Guided Device Can Preserve Quality of Life While Eradicating Cancer

Dr. Ghai and colleagues from UHN and Sinai Health performed MRgFUS on 44 men with prostate cancer and tracked their outcomes using MRI, biopsies and surveys of erectile and urinary function.


Treatment was successfully completed in all the men. There were no major treatment-related adverse events, and 41 of 44 participants, or 93%, were disease-free at the treatment site on five-month biopsy.


Scores for erectile function and prostate symptoms were similar at baseline and five months.


“The results so far have been very good,” Dr. Ghai said. “We treated a smaller area using this device, yet still had very good results. At the same time the patients preserved their erectile and urinary function.”


Although MRgFUS requires additional expertise, resources and cost, it has several key advantages over other approaches. Use of MRI allows for thermal feedback during treatment, an important consideration since killing the cancerous tissue requires a temperature of more than 60 degrees Celsius.


“MRI almost instantaneously gives feedback as to the temperature that we’ve been able to achieve at the site,” Dr. Ghai said. “If the temperature was not what I wanted to get, I can reheat that area so that chances for successful treatment increase.”


An additional benefit of MRI is that it can show if there is any remaining vascularity in the treatment area.


Pending approval from the U.S. Food and Drug Administration and Health Canada, MRgFUS has promise as an option for intermediate-risk patients who want their prostate cancer eradicated without diminishing their quality of life, a group that makes up a potentially significant number of patients. Dr. Ghai estimates that of all the prostate cancer patients who go on to get surgery or radiation therapy, approximately 20% to 30% would be eligible for some type of focal therapy like MRgFUS.


As part of the study, the researchers are collecting two-year follow-up data from all patients in the study group and plan to publish the results in another manuscript.


For More Information


Access the Radiology study, “MRI-guided Focused Ultrasound Ablation for Localized Intermediate-Risk Prostate Cancer: Early Results of a Phase II Trial.”


Read previous RSNA News stories on prostate cancer:

Ghai feature

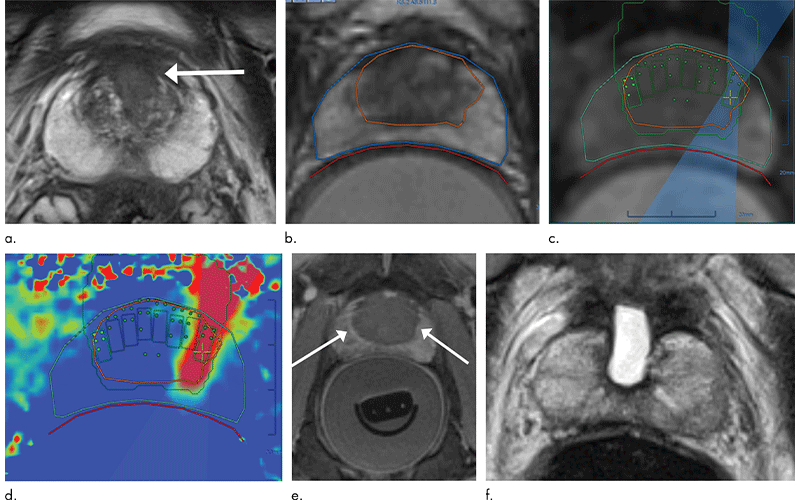

Images in 69-year-old man with biopsy-confirmed Gleason score 7 (3+4) prostate cancer. (a) Pretreatment axial T2-weighted fast spin-echo MRI scan (repetition time msec/echo time msec, 3820/97) shows tumor in midline anterior transition zone (arrow). (b) Intraoperative MRI scan shows contoured rectal wall (red line), prostate margin (blue outline), and region of interest (orange outline). Because the urethra was included in planned treatment volume, a suprapubic catheter was placed for continuous bladder drainage during treatment. (c) Intraoperative MRI scan shows focused ultrasound beam path (blue) overlaid on treatment plan. Rectangles illustrate each sonication spot. (d) Thermal map image obtained during treatment with heat deposition color coded in red overlaid on sonication spot. (e) Axial gadopentetate dimeglumine–enhanced MRI scan (230/2.97) obtained immediately after treatment shows devascularized ablated volume (arrows). (f) Corresponding T2-weighted fast spin-echo MRI scan (3820/97) at 5 months after ablation shows complete involution of transition zone. All seven cores from treatment area margins were negative for cancer at biopsy.
